DIG3D.LP.M – 3axis low profile touch probe with magnetic connector

This device is mostly used for a surface digitizing, or as an edge finder and geometry measurement by CNC machines.

The sensor has sensitive switch, triggered by touching of the tip.


Dimensions


Connection

Power supply5-12V
— or —
17-24V
Switch typeNC – normally closed = output is active, when sensor is NOT triggered.
— or —
NO – normally openned = output active, when sensor is triggered.
Output typeNPN – switch to GND
— or —
PNP – switch to power supply
Cable length1m, if you need longer, specify the lenght of the cable, when ordering

Wiring

Wire colorSignal
Brownpositive power supply
BlackOutput
BlueGND

Standard accessories


Downloads


Add this product to the cart

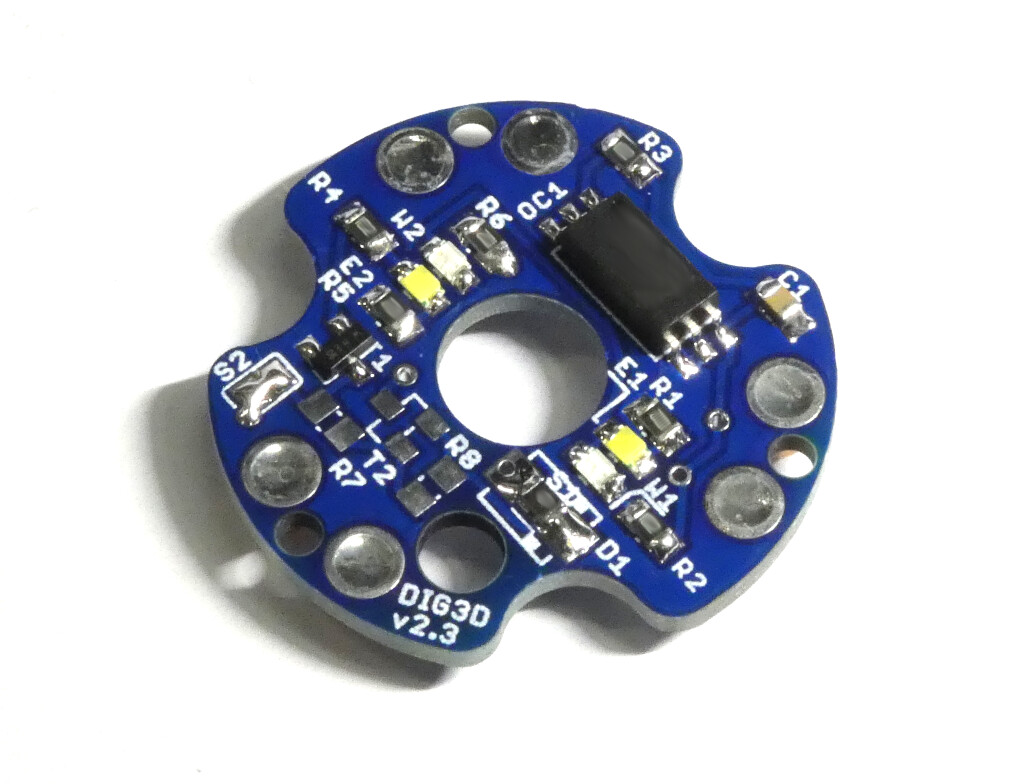

PCB.DIG3D.v2.3

SKU 00010
$30.00
In stock
1
Product Details

Spare PCB for DIG3D and DIG3D.LP.M. Please select correct output version.

Order is accepted only for the current customers, which already bought DIG3D or DIG3D.LP.M or with the new probe in the same order.
