DIG3D.R ALU & external sensors SET
395.0$
This CNC probe is mounted on the Z-axis and features an electrically rotating touch stylus.
In its idle state, the stylus is positioned upward. When measurement is required, it automatically rotates downward into the active position.The main advantage of this design is that there’s no need to insert the probe into the spindle, which not only improves measurement repeatability but also significantly reduces setup time.
Z-asix fixed, CNC digitizer, including control unit DIG3D.R.CU
Body material: ALU ALLOY
Sealed: yes
Power voltage: 12-24V DC
Item contains:
– DIG3D.R probe
– DIG3D.R.CU control unit
Optional:
– Button with cable (optional)
– RS485 to USB converter (optional)
– Fixed TLS (optional)
– Manual TLS with magnetic connector (optional)

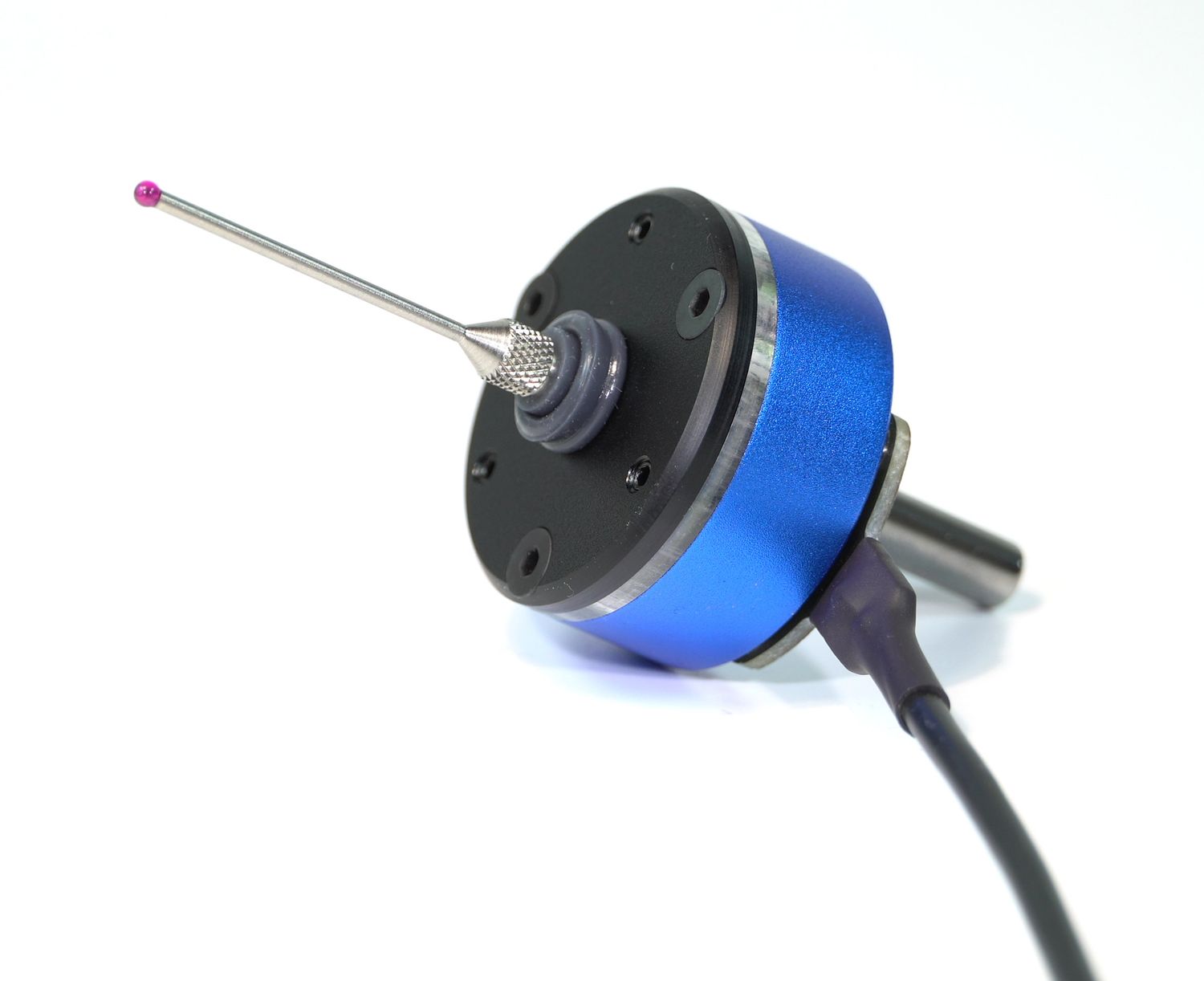

– Spindle probe DIG3D.LP.M ALU (optional)
For more info visit the product page
| Weight | 0.25 kg |
|---|---|
| Body material | Aluminium |
| Rotation | Left side, Right side |
| M2.5 probe interface | 10mm (short), 15mm (long) |
| Sealed | Yes |
| Power Supply | 5-24V DC |
